The 11KW Solar Water Pump System is a highly efficient Photovoltaic (PV) Water Pump System, specially designed for agricultural, industrial, and remote water supply applications. It converts solar energy directly into electrical energy using solar panels to drive a high-powered water pump. Ideal for off-grid or grid-unstable regions, this system provides a sustainable, cost-effective, and maintenance-light alternative to diesel-powered or traditional electric pumping systems.

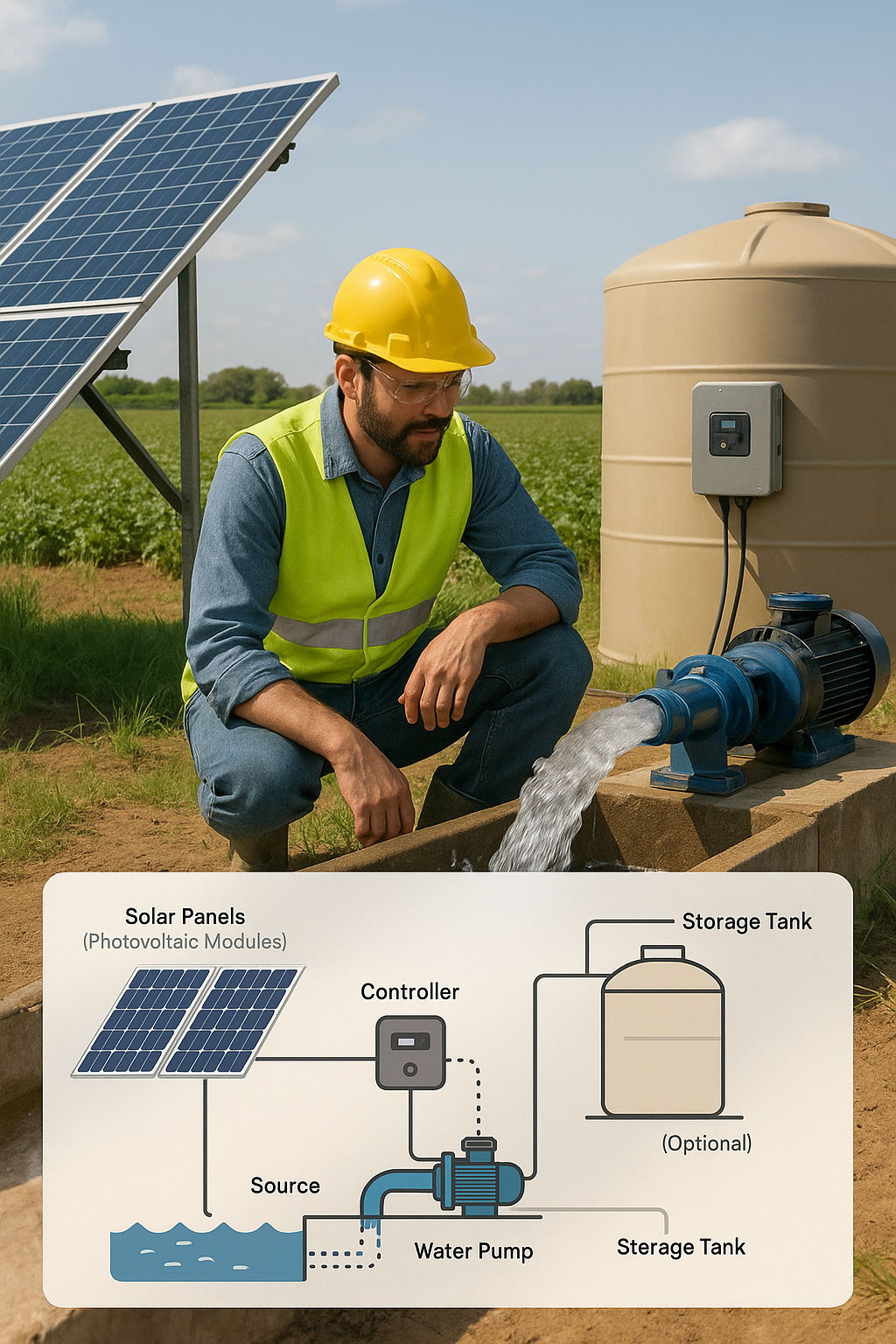

A Photovoltaic Water Pump System utilizes solar panels to convert sunlight into electricity, which powers an electric pump to lift water from a source to where it's neededβsuch as an irrigation network, storage tank, or directly to crops.
Solar Panels (Photovoltaic Modules): Capture sunlight and convert it into direct current (DC) electricity.
Controller / Inverter: Regulates power to the pump. It ensures the pump runs efficiently and provides protection features (overload, dry-run, etc.).
Water Pump: Lifts water from deep wells, rivers, or ponds to tanks or irrigation systems.
Optional Storage Tank: Stores water for use during non-sunlight hours (evening, cloudy weather, etc.).
Component | Specification / Description |
|---|---|
Solar Panels | 25-30 pcs, 450Wβ500W monocrystalline modules (13KWβ15KW total) |
Pump Type | 11KW AC submersible or surface pump |
Pump Inverter | MPPT-based controller with protection & smart operation features |
Structure | Ground-mounted frame with anti-corrosion galvanized steel |
Cables & Sensors | UV-resistant wiring, optional water level/dry-run sensors |
Water Storage | Optional 5β50 mΒ³ tank (based on application) |
Item | Value |
|---|---|
Pump Power | 11KW |
Max Flow Rate | Up to 45 mΒ³/h |
Max Head (Lifting Height) | Up to 150 meters |
PV Panel Efficiency | β₯21% (mono-crystalline type) |
Inverter Type | MPPT, IP65 outdoor-rated |
Operation Mode | Solar-only / Solar + Grid Hybrid |
Daily Output | 30,000 β 50,000 liters/day |
β No Fuel Required β Runs purely on solar energy with zero emissions or noise.
β Low O&M Cost β Virtually maintenance-free compared to diesel alternatives.
β Scalable & Modular β Power range and water output customizable to your land size.
β Eco-Friendly β 100% clean energy, supports sustainable agriculture & development goals.
β Reliable in Remote Areas β Ideal for off-grid farms, villages, ranches, or government-funded rural water projects.
β Increased Crop Yield β Timely and consistent irrigation improves productivity by 15-40%.
Agricultural Irrigation (Drip, sprinkler, flood irrigation)
Livestock Watering
Rural Community Drinking Water
Aquaculture or Fish Pond Management
Emergency Water Supply in Disaster Zones
π Location: Garissa County, Kenya
π System Specs: 11KW deep well pump, 15KW solar panels, 10mΒ³ tank
π Result:
Replaced diesel pump saving $1,500/month
Increased vegetable yield by 35%
ROI reached in 16 months
24/7 water availability for irrigation and local school drinking water
Use solar trackers for 20β25% extra output (optional but useful in cloudy regions)
Secure inverter/controller inside waterproof and ventilated enclosure
Overhead tank installation improves pressure delivery without extra pumps
Plan daily water requirements before system sizing to avoid undersupply
β 5-Year Warranty (Pump & Inverter)
β 25-Year Output Warranty (Solar Panels)
β Global logistics & installation support
β CE, ISO, and TUV-certified components
β OEM/ODM options available
