3m Solar Collector Tube

The 3m solar collector tube refers to a solar collector tube with a length of 3 meters. This type of collector tube is likely used in solar thermal systems or solar water heaters to absorb sunlight and convert it into heat energy. The specifics of its design and application may vary based on the intended use within a solar energy system.

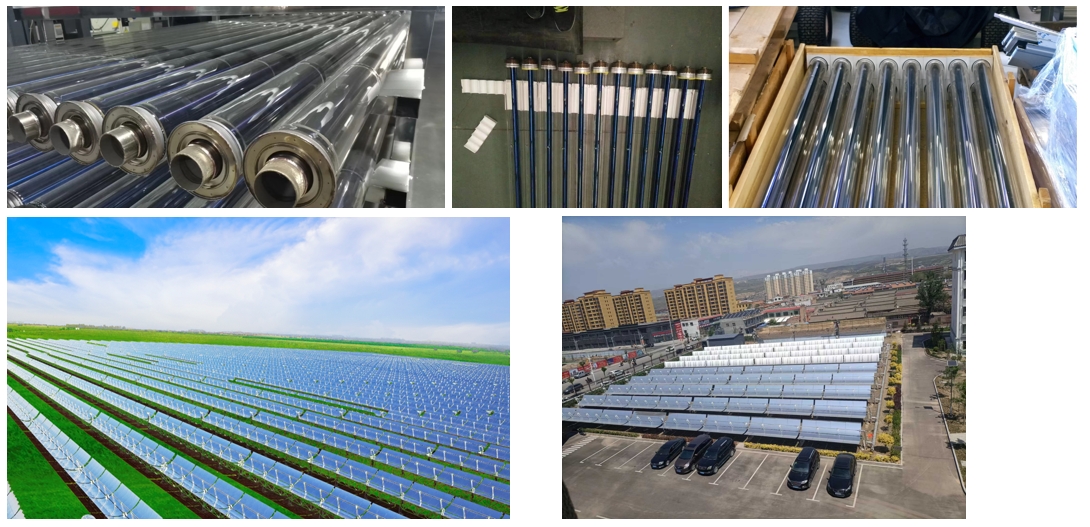

Solar collector tube Packing and delivery:

packing Details	wooden box
Port	Qingdao or customer's request
Supply Ability	5000 pcs per Month

Products Describe:

technical data for 3m glass-metal tube
type	unit	DYJHW95x40x3000	DYJHN/95x50x3000	remark
Constructure type		Outer corrugated ring	Inner corrugated ring	water or heat transfer oil
Diameter of outer glass tube	mm	95	95
Diameter of metal tube	mm	40	50
Length	mm	3000	3000
Tmax	℃	400	400
weight	kg	14	16
Wall Thickness	mm	2	2
glass tube material		Borosilicate glass	Borosilicate glass
Metal tube material		SUS304	SUS304
Average absorption Ratio		>95.5%	>95.5%
Launch ratio		<9.5%(300℃)	<9.5%(300℃)
glass tube Average solar transmittance		≥92%	≥92%
HTF		water or heat transfer oil	water or heat transfer oil
operating pressure		≤3MPa	≤3MPa
Average heat loss		60W/m（300℃）	60W/m（300℃）
Degree of vacuum		<5x10-4Pa	<5x10-4Pa
Service life		30	30

Advantage for Photothemal Glass-Metal Straight Tube:

◆>95.5%High Average absorption Ratio

◆<9.5%Low Launch ratio

◆Low average heat loss

◆Super Low degree of vacuum

◆long using life

◆Core Metal-Glass Fusion sealing Technology

◆High quality magnetron sputtering metal film layer

◆optional for Outer or Inner corrugated ring

Manufacturing process:

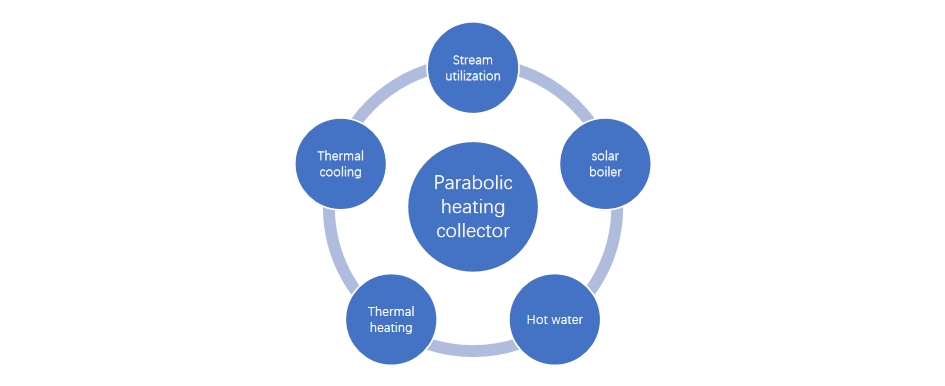

Main Application with matching Prabolic heating collector:

The field of industrial utilization	Purpose	In the form of heat energy	temperature
Heat application	Winter heating	Hot water or other medium	80—140℃
Food manufacture	Rinse, concentrate and dry	Steam, steam, steam (Air)	80—240℃
Plastic material processing	Initiation, rapid separation, drying	steam, steam (Air)	130—150℃
Glass processing	Flat and dry fibers	air	110—180℃
Chemical industry	Heating, leaching, drying	steam (Air)	150—180℃
Paper industry	Kraft paper is bleached and dried	Steam	150—180℃
Wood proces	Kiln drying, plywood preparation, hot-pressed fiberboard	steam ,Air	80—200℃
synthetic rubber	Initiator, monomer recovery, drying	steam, steam (Air)	130℃
Highway construction	Melt the asphalt	Steam	120—180℃
Tobacco industry	Silk making	Steam	150—200℃

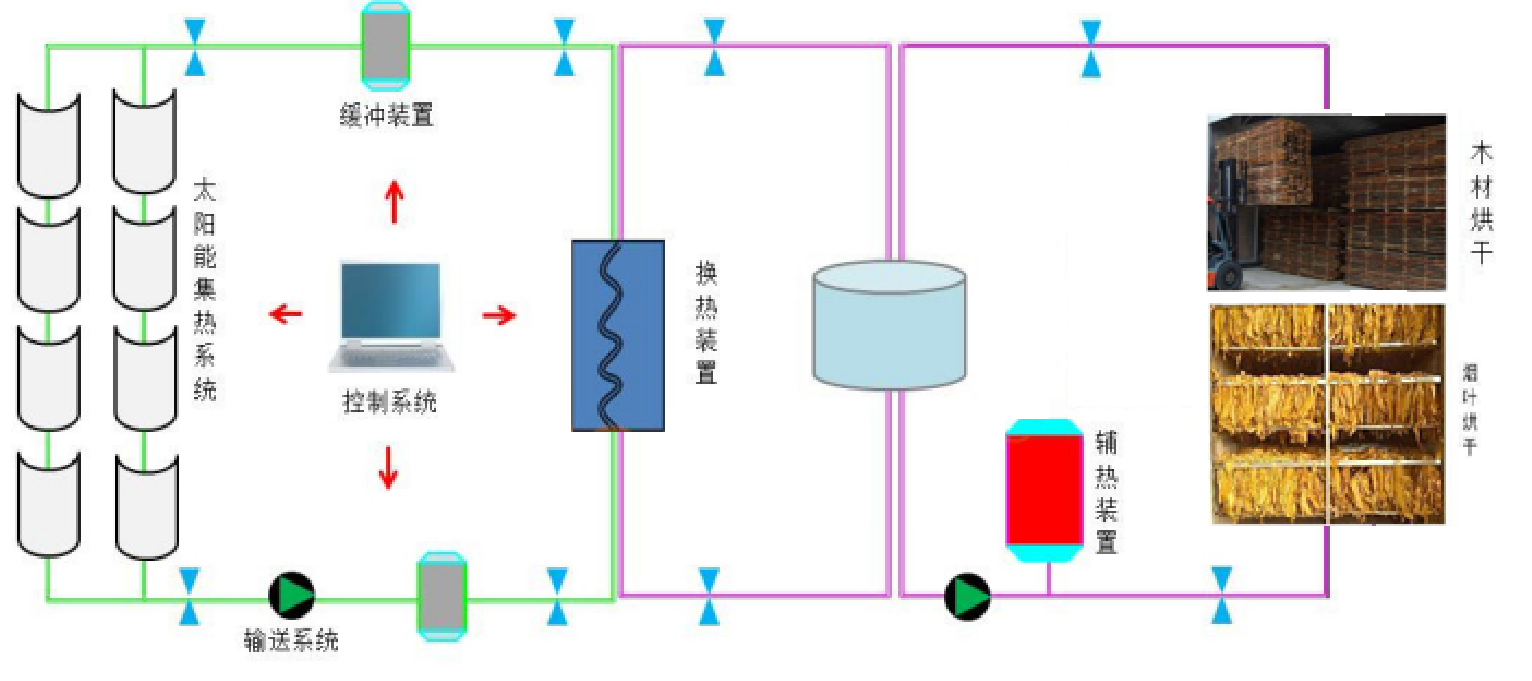

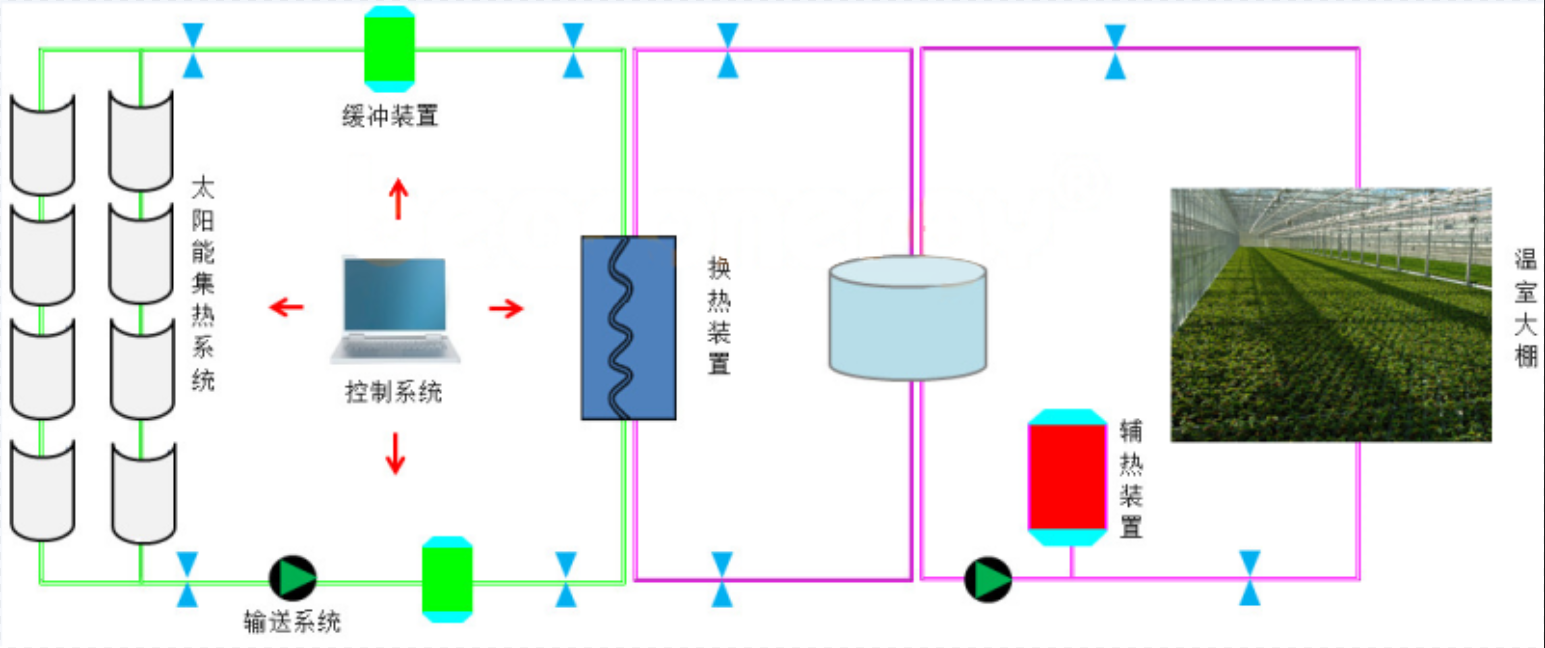

Working Principle Graph for Parabolic Heating Collector

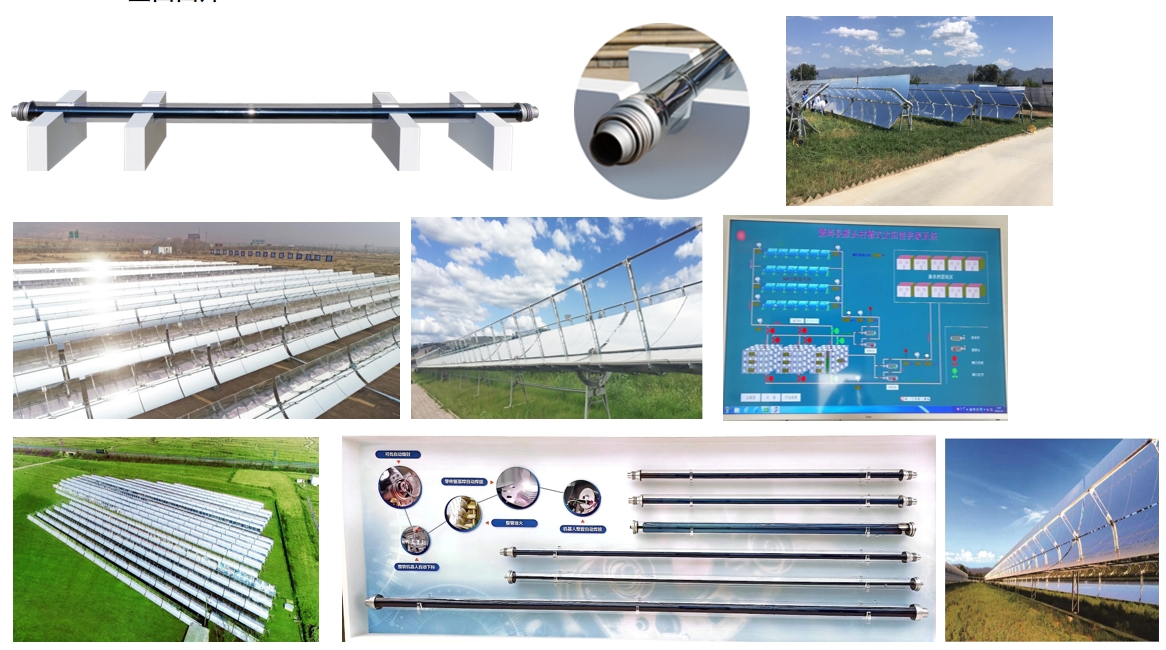

How to use thermal metal-glass tubes:

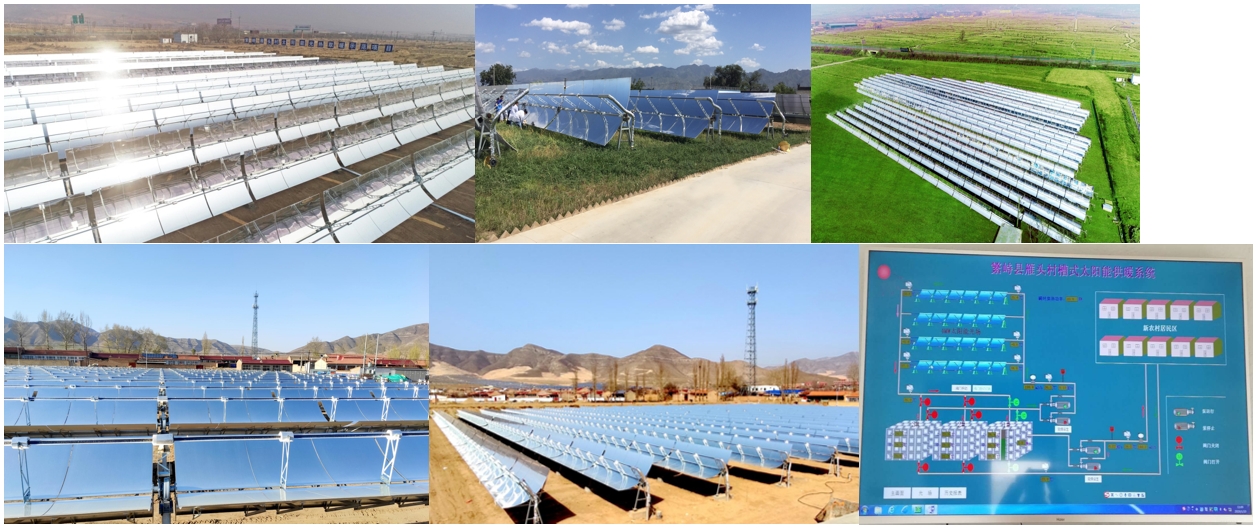

1.Solar heating in winter

Matching 2.55mx6m parabolic heating collector generates high temperature water(60-100℃ or 100-150℃(pressed).

This technology is mainly used winter heating for villages away from cities

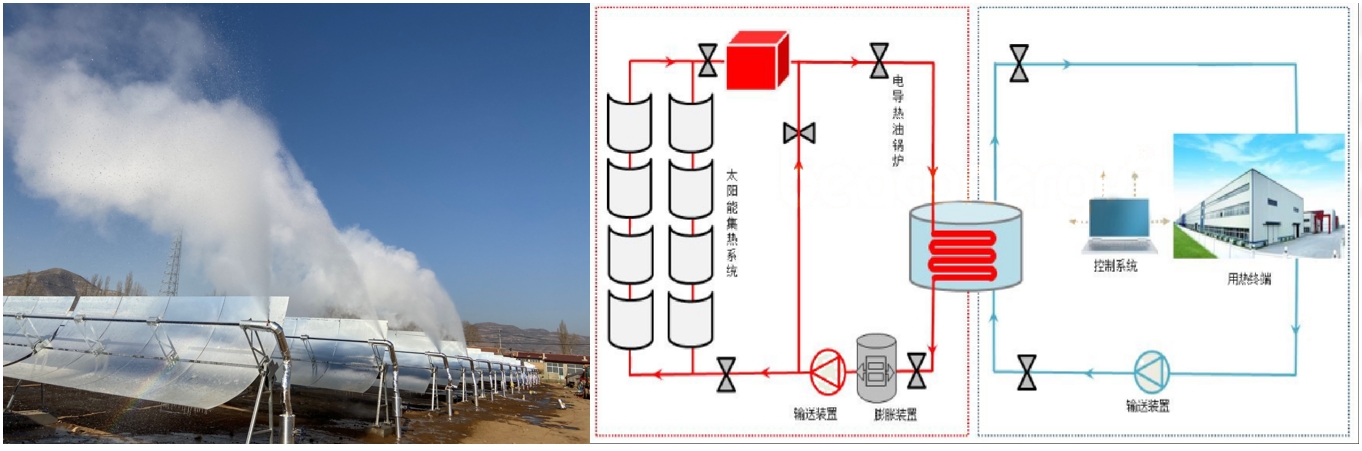

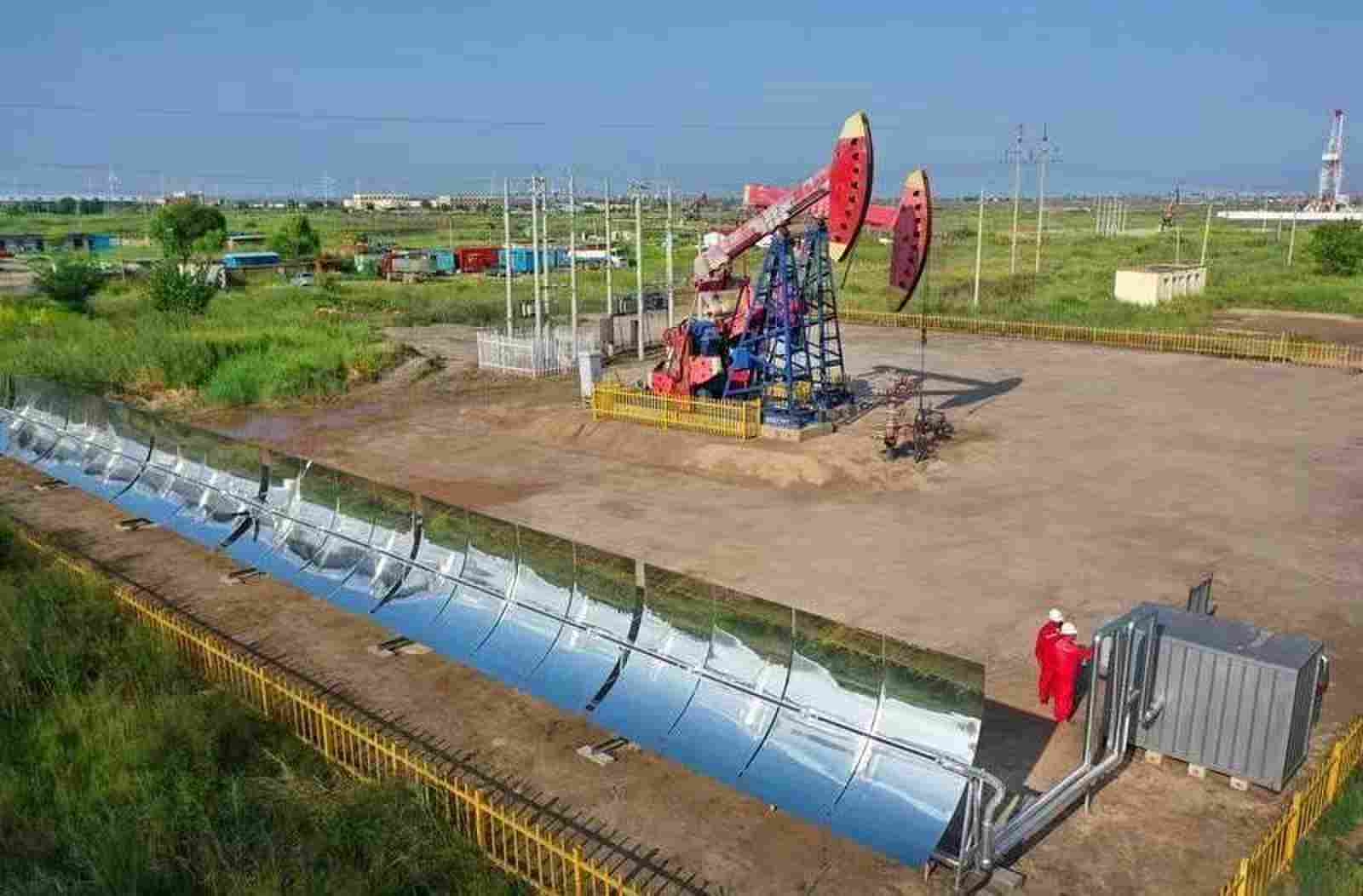

2. Solutions for high temperature steam(120-180℃)

Replace traditional coal-fired boilers and electric boilers to reduce emissions of dioxide. Widely used in printing and dyeing, food, plywood and other industries that require high-temperature steam. Currently, several sample projects have been completed in Shanxi.

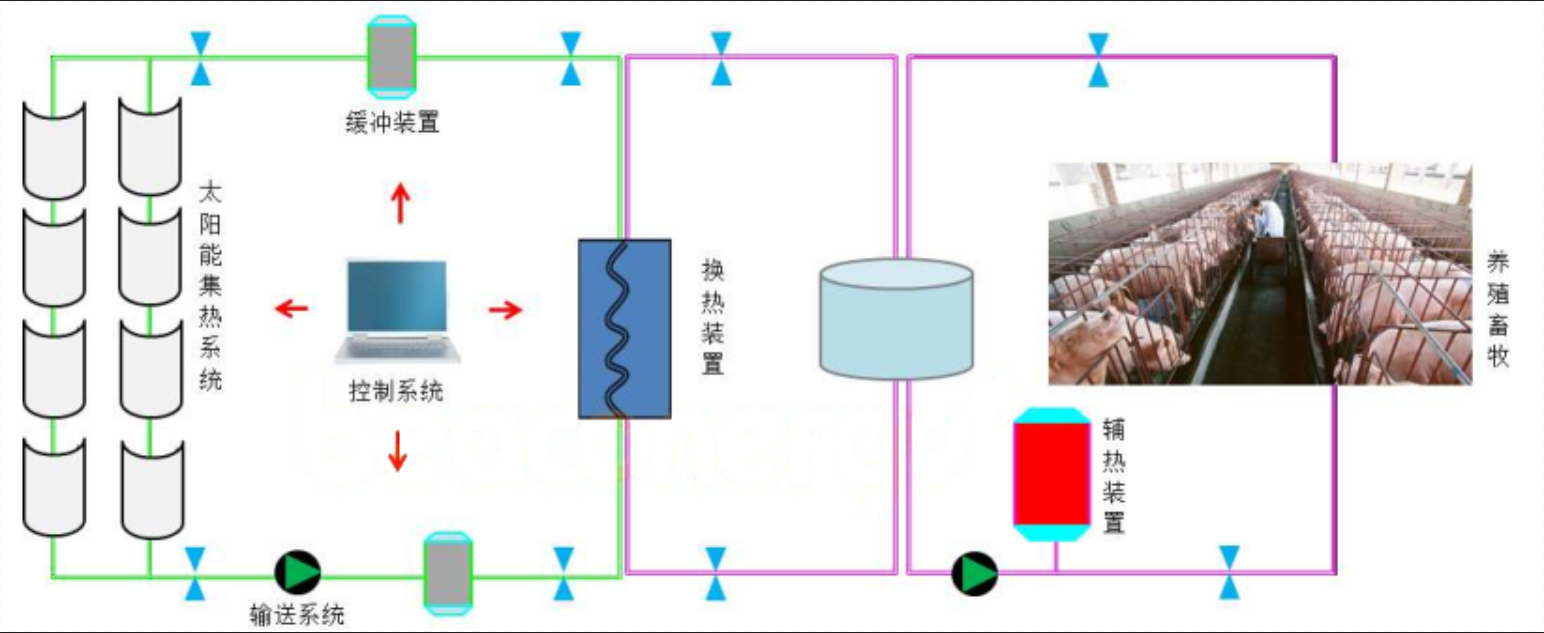

3. Livestock breeding solutions:
